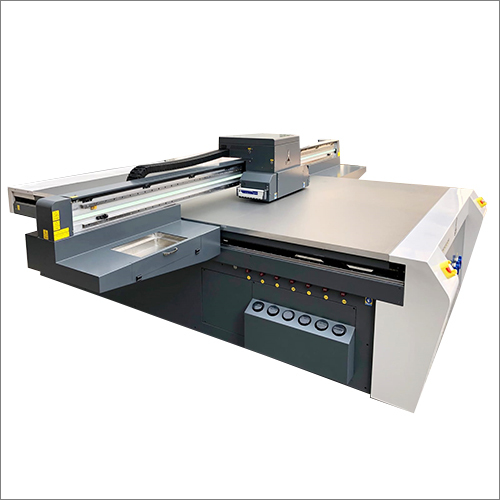

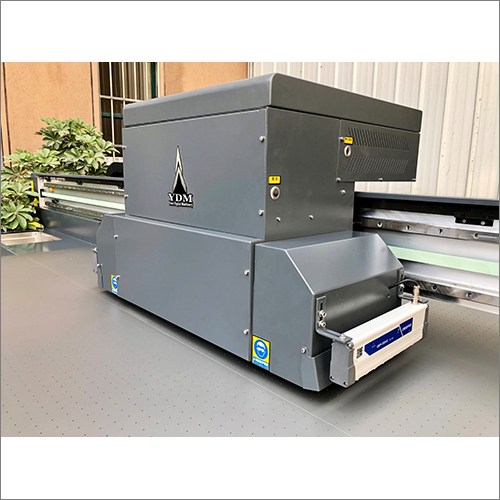

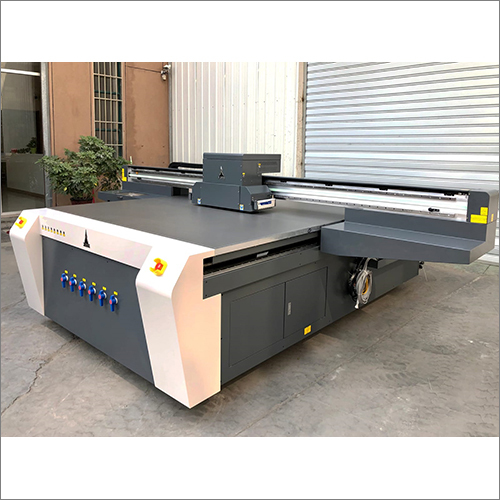

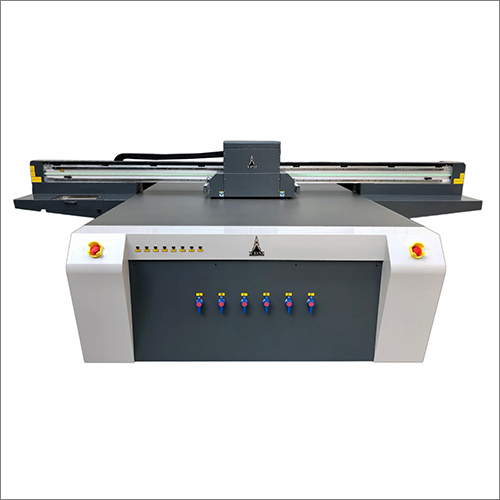

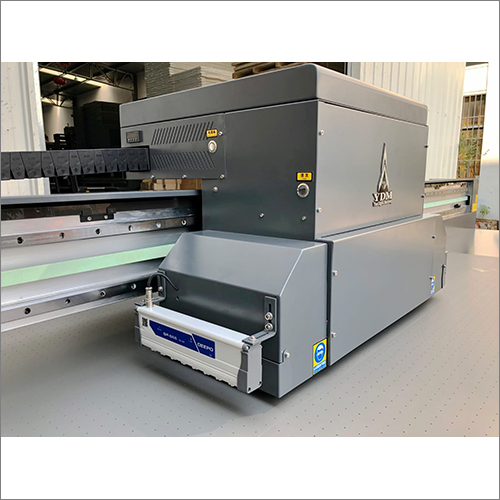

UV Flatbed Printer Machine

Name: UV Flatbed Printer Machine
Brand: V-TECH ENGG. SOLUTIONS
Price: 1600000 INR
Availability: InStock

Price 1600000 INR/ Unit

Get a Price/Quote

MOQ : 1 , , Unit

UV Flatbed Printer Machine Specification

Working Temperature
18C - 30C

Usage & Applications
Glass, PVC, Acrylic, Wood, Metal, Ceramic, Leather, MDF, Plastic, Card, and more

Function
Prints directly on flat and rigid media

Processor Type
Proprietary ARM-based Controller

Interface
USB 2.0/3.0, Ethernet

Weight
Approx. 650 kg

Power Supply
Single-phase, 220V 50/60Hz

Humidity %
20% - 80% RH (non-condensing)

Print Speed
Up to 15 sqm/h

Noise Level
< 60 dB

Cabinet Material
Heavy Duty Steel Frame

Features
Multi-layer printing, White and Varnish support, Adjustable head height, Anti-collision system, UV LED Curing, Touchscreen Control, Ink Alarm System

Processor Speed
1.8 GHz

Print Technology
UV Inkjet Flatbed Printing

Capacity
Continuous print with 1L/bottle ink tanks

Condition
New

Dimensions
1850 mm 1300 mm 1230 mm

Gross Power
3.5 kW

Voltage
AC 220V/50Hz (10%)

Automatic Grade
Automatic

Color Print Speed
9 sqm/h

Black Print Speed
15 sqm/h

Maximum Paper Size
1220 mm 2440 mm

Maximum Resolution
2880 x 1440 dpi

File Format Supported
TIFF, JPEG, PNG, PDF, EPS

Ink Type
UV-curable LED Ink (CMYK + White + Varnish)

Safety Features
Emergency Stop Button, Overheat Protection, Anti-static Spray

Nozzle Type
Industrial-grade Piezoelectric Printhead

Media Thickness
Up to 100 mm

Alignment System
Automatic Positioning Sensors

RIP Software
PhotoPRINT, Maintop (Configurable)

Printhead
Epson i3200-U1 or equivalent

Curing System
High-power UV LED Lamp

Movement System
Linear Guide Rail + Lead Screw

UV Flatbed Printer Machine Trade Information

Minimum Order Quantity
1 , , Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
10 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About UV Flatbed Printer Machine

Experience the majesty of industrial printing with our UV Flatbed Printer Machine, engineered for trendsetting businesses that appreciate ravishing detail and kingly reliability. Featuring competitive pricing and a robust, heavy-duty steel frame, this printer uses an industrial-grade piezoelectric printhead (Epson i3200-U1 or equivalent) to deliver vibrant, multi-layer prints directly onto glass, wood, metal, acrylic, and more. Its UV-curable LED inks support CMYK+White+Varnish for elevated results, while automatic positioning and anti-collision safeguards make operation seamless. Pick yours today and transform ordinary materials into majestic creations!

Unmatched Special Features & Application Areas

This UV Flatbed Printer Machine impresses with features like multi-layer printing, white and varnish support, anti-collision system, touchscreen control, and UV LED curing. The adjustable head height accommodates media up to 100mm thick, making it ideal for printing on glass, PVC, leather, wood, metal, MDF, ceramic, acrylic, plastic, and card. Its safety-focused design includes emergency stop, overheat protection, and anti-static spray-tailored for commercial service providers, traders, and suppliers in India.

Reliable Supply, Secure Shipping & Certifications

Our UV Flatbed Printer Machine is supplied with a strong focus on secure shipping and timely dispatching. Supported by a robust proposal amount process, we ensure every unit is properly checked and certified for performance and safety. With supply ability of high capacity, FOB port in India, and recognized quality certifications, your investment is protected from procurement through delivery, offering peace of mind and streamlined installation.

FAQ's of UV Flatbed Printer Machine:

Q: How does the UV Flatbed Printer Machine handle various media thicknesses?

A: The printer features an adjustable head height, enabling it to accommodate and print directly on flat and rigid media up to 100 mm thick, including glass, PVC, MDF, acrylic, metal, leather, and more.

Q: What safety features are included in this UV Flatbed Printer?

A: It is equipped with an emergency stop button, overheat protection, anti-static spray, anti-collision system, and automatic positioning sensors to enhance operational safety during printing processes.

Q: Where can the UV Flatbed Printer Machine be used?

A: This machine is perfect for service providers, traders, and suppliers who work with a wide range of substrates such as ceramics, plastics, wood, acrylic, and other flat surfaces-making it ideal for signage, promotional items, home decor, and industrial applications.

Q: When can customers expect delivery after placing an order?

A: Once a proposal amount is secured, the dispatching process begins promptly. Secure shipping ensures the printer arrives at your location in India quickly and safely, subject to stock and logistics arrangements.

Q: What are the primary benefits of using UV-curable LED ink in this printer?

A: UV-curable LED ink provides quick curing, excellent adhesion, vibrant colors (CMYK+White+Varnish), and lasting durability on diverse substrates, resulting in professional, high-resolution outputs up to 2880 x 1440 dpi.

Q: What certifications does the UV Flatbed Printer Machine hold?

A: The printer is delivered with recognized quality and safety certifications, ensuring compliance with industry standards and providing reliability and assurance to users.
